Q Plus Serileri
LAZER KAYNAKLARI:
– Q-Switch Nd:YAG 532/1064 nm
– Q-Switch Ruby 694 nm
– Pulsed Nd:YAG 1064/1320 nm
– Pulsed Alexandrite 755 nm
ENDİKASYONLAR:
– Çok renkli dövme silme
– Leke tedavileri
– Yüz gençleştirme
– Epilasyon
– Vasküler Lezyonlar
– Skar tedavisi
VİDEO
ÖNCESİ & SONRASI

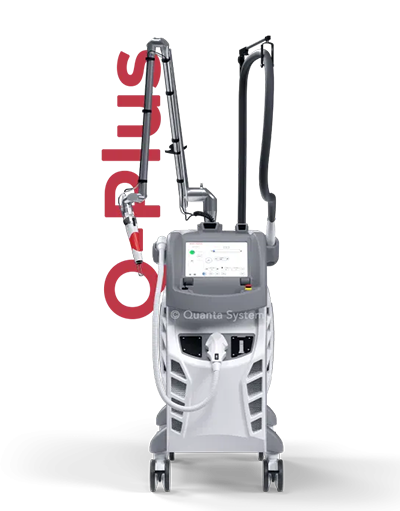

Gerçek lazer kristallerinden oluşan güçlü Q-Switch lazer konsolu Q-Plus farklı ihtiyaçlara göre oluşturulabilir. 3 ayrı lazer dalga boyu olan Nd:Yag, KTP ve Ruby ile her renk dövmede maksimum başarı elde edilebilir. Eklenebilen Ipl ve lazerler ile damar ve epilasyon gibi kozmetik tedavileri yapmak mümkündür.
Optibeam Teknolojisi
Lazer ışını, seçilen spot genişliğine bağlı olarak oluşan alanda homojen bir dağılım göstermelidir. Işın alana homojen dağılırsa etki eşit ve yanık riski minimum olur. Optibeam teknolojisi lazerlerimizde standart olarak sunulmakta olup bu görevi yapmaktadır.
This model is the Q-Switched Nd:YAG 532/1064 nm
Indications:
- Removal of black, dark blu, brown, red, orange and violet tattoo inks
- Benign Pigmented Lesions
- Facial Skin Treatments
Technical Specifications:
| Laser | Nd:YAG Q-Switch | |
| Wavelength (nm) | 1064 | 532 |
| Pulse Width (ns) | 6 | 6 |
| Repetition Rate (Hz) | Up to 10 | Up to 10 |
| Spot Size (mm) | Up to 5×5 | Up to 5×5 |
| Max Fluence (J/cm² ) | Up to 22 | Up to 11 |
| Electrical Requirements | 230 VAC; 16 A; 50/60 Hz | |
| Dimensions and Weight | 400 (W) x 900 (D) x 930 (H) mm³; 90 Kg | |
This model is the Q-Switched Nd:YAG 532/1064 nm + Q-Switched Ruby 694 nm
Indications:
- Removal of black, dark blu, brown, red, orange, violet, sky blu and green tattoo inks
- Benign Pigmented Lesions
- Facial Skin Treatments
Technical Specifications:
| Laser | Nd:YAG Q-Switch | Ruby Q-Switch | |
| Wavelength (nm) | 1064 | 532 | 694 |
| Pulse Width (ns) | 6 | 6 | 30 |
| Repetition Rate (Hz) | Up to 10 | Up to 10 | Up to 2 |
| Spot Size (mm) | Up to 5×5 | Up to 5×5 | Up to 5×5 |
| Max Fluence (J/cm2 ) | Up to 22 | Up to 11 | Up to 25 |
| Electrical Requirements | 230 VAC; 16 A; 50/60 Hz | ||
| Dimensions and Weight | 400 (W) x 900 (D) x 930 (H) mm³; 90 Kg | ||
This model is the Q-Switched Ruby 694 nm
Indications:
- Removal of black, blu, sky blu, brown, violet and green tattoo inks
- Benign Pigmented Lesions
- Facial Skin Treatments
Technical Specifications:
| Laser | Ruby Q-Switch |
| Wavelength (nm) | 694 |
| Pulse Width (ns) | 30 |
| Repetition Rate (Hz) | Up to 2 |
| Spot Size (mm) | Up to 5×5 |
| Max Fluence (J/cm² ) | Up to 25 |
| Electrical Requirements | 230 VAC; 16 A; 50/60 Hz |
| Dimensions and Weight | 400 (W) x 900 (D) x 930 (H) mm³; 90 Kg |
This model is the Q-Switched Nd:YAG 532/1064 nm + Pulsed Nd:YAG 1064/1320 nm (1320 nm is optional) Can be equipped with the integrated contact skin cooler (optional) or SkinCryo handpiece adapter (optional)Indications:
- Removal of black, dark blu, brown, red, orange and violet tattoo inks
- Benign Pigmented Lesions
- Facial Skin Treatments
- Dermatological Vascular Lesions
- Scars / Acne Scars
- Permanent Hair Reduction
Technical Specifications:
| Laser | Nd:YAG Q-Switch | Nd:YAG Long | Nd:YAG Short | Nd:YAG Long | |
| Wavelength (nm) | 1064 | 532 | 1064 | 1064 | 1320* |
| Pulse Width (ns) | 6 | 6 | 2—100 ms | 0.3—1 ms | 5—10 |
| Repetition Rate (Hz) | Up to 10 | Up to 10 | Up to 2 | Up to 7 | Up to 5 |
| Spot Size (mm) | Up to 5×5 | Up to 5×5 | Up to 14 | Up to 6 | Up to 8 |
| Max Fluence (J/cm² ) | Up to 22 | Up to 11 | ˃ 500 | Up to 190 | Up to 35 |
| Electrical Requirements | 230 VAC; 16 A; 50/60 Hz | ||||
| Dimensions and Weight | 400 (W) x 900 (D) x 930 (H) mm³; 90 Kg | ||||
This model is the Q-Switched Nd:YAG 532/1064 nm + Pulsed Alexandrite 755 nm Can be equipped with the integrated contact skin cooler (optional) or SkinCryo handpiece adapter (optional)
Indications:
- Removal of black, dark blu, brown, red, orange and violet tattoo inks
- Benign Pigmented Lesions
- Facial Skin Treatments
- Dermatological Vascular Lesions
- Scars / Acne Scars
- Permanent Hair Reduction
Technical Specifications:
| Laser | Nd:YAG Q-Switch | Pulsed Alexandrite | |
| Wavelength (nm) | 1064 | 532 | 755 nm |
| Pulse Width (ns) | 6 | 6 | 2—100 ms |
| Repetition Rate (Hz) | Up to 10 | Up to 10 | Up to 2 |
| Spot Size (mm) | Up to 5×5 | Up to 5×5 | Up to 16 |
| Max Fluence (J/cm² ) | Up to 22 | Up to 11 | Up to 123 |
| Electrical Requirements | 230 VAC; 16 A; 50/60 Hz | ||
| Dimensions and Weight | 400 (W) x 900 (D) x 930 (H) mm³; 90 Kg | ||
Twain 2940 is a laser handpiece that fits to the Twain universal connector present on the Quanta System laser platforms. It has been designed to perform ablation procedures, both fractional and homogeneous. The Er:YAG laser @ 2940 nm is able, through the variation of pulse parameters, to remove the layers of skin with minimal thermal damage or produce a higher coagulation suitable for the stimulation of collagen production.
| Fractional: | Homogenous: |
|
|
Technical Specifications:
| Laser | Er:YAG |
| Wavelength (nm) | 2940 |
| Pulse Width (ms) | 0.3—1 |
| Repetition Rate (Hz) | Up to 6 |
| Spot Size (mm) | 2, 4; 9 mm; fractional |
| Max Fluence (J/cm² ) | Up to 95 @ 2 mm |
Indications:
- Permanent Hair Reduction
- Benign Pigmented Lesions
- Skin Rejuvenation Procedures
- Vascular Treatments
- Active Acne
Technical Specifications:
| Source | IPL |
| Wavelength (nm) | 650-1200 | 625-1200 | 590-1200 | 570-1200 | 550-1200 | 400-1200 |
| Pulse Width (ms) | 5 – 240 |
| Repetition Rate (Hz) | 0.5 |
| Spot Size (mm) | 48×13 mm² or 25×13 mm² |
| Max Fluence (J/cm² ) | Up to 25 |
